Multi-omics pipeline tutorial¶

The multi-omics branch integrates unpaired (or paired) scRNA + scATAC data via GLUE, computes cell-type labels on the joint embedding, and then produces the same single sample embedding (uns['X_DR_sample']) as the single-modality pipelines. Downstream analyses (distance, trajectory, DGE, clustering) reuse the shared modules.

Inputs¶

Primary: test_multiomics_integrated.h5ad — the pre-computed scGLUE-integrated object (carries obsm['X_glue'] and obsm['Z_clust']). The tutorial starts here.
Optional (from-scratch GLUE): RNA.h5ad and ATAC.h5ad — modality-tagged cell-level counts; plus optional per-modality metadata CSVs or an additional_hvg_file (a plain-text gene list forced into the HVG set). None of these are needed when phenotype columns already live in .obs.

Demo data

Download test_multiomics_integrated.h5ad from the demo dataset into a local data/ folder to run the tutorial as written. To follow the optional from-scratch GLUE step instead, grab the raw test_RNA.h5ad and test_ATAC.h5ad; their .obs already carry sample and sev.level, so no metadata files are required.

Output lands under output_dir/multiomics/.

1. Load the integrated data¶

The demo ships a pre-computed scGLUE integration, so the tutorial starts from it — load test_multiomics_integrated.h5ad and go straight to cell typing. It already carries the joint embedding (obsm['X_glue'], aliased to the sample-preserved Z_rmd) and the sample-removed obsm['Z_clust'], so no scGLUE training and no bedtools are needed. Since the scGLUE import is lazy (v0.1.3+), this pre-integrated path doesn't even require scGLUE to be installed — a plain pip install sampledisco runs it — you only need to install scGLUE yourself (see Installation) if you want to train GLUE from scratch.

import anndata as ad

adata_integrated = ad.read_h5ad("data/test_multiomics_integrated.h5ad")

Continue to joint cell typing. To build this object yourself from the raw RNA + ATAC counts, follow the optional section below instead.

Optional — integrate from scratch with GLUE¶

This trains scGLUE, so you must install scglue + the bedtools binary yourself first (see Installation); it is the slowest part of the pipeline. multiomics_preparation runs the full GLUE pipeline as toggleable sub-stages: scGLUE preprocessing (run_preprocessing), adversarial training (run_training), cell-union merge into a single integrated object (run_merge), per-modality QC + normalize (run_preprocess_per_modality), and optional visualization (run_visualization). Set run_second_glue_for_sample_removal=True to train scGLUE a second time and also obtain the sample-REMOVED cluster embedding (obsm['Z_clust']); the primary run's X_glue is aliased to the sample-PRESERVED obsm['Z_rmd'].

from sampledisco.preparation.multi_omics_glue import multiomics_preparation

multiomics_preparation(
    rna_file="data/test_RNA.h5ad",
    atac_file="data/test_ATAC.h5ad",
    rna_sample_meta_file=None,
    atac_sample_meta_file=None,
    additional_hvg_file=None,        # optional; not needed for the demo
    output_dir="sampledisco_demo_output/multiomics",
    # Process control flags
    run_preprocessing=True,
    run_training=True,
    run_merge=True,
    run_preprocess_per_modality=True,
    run_visualization=True,
    # GLUE preprocessing
    ensembl_release=98,
    species="homo_sapiens",
    use_highly_variable=True,
    n_top_genes=2000,
    n_top_peaks=50000,
    n_pca_comps=50,
    n_lsi_comps=50,
    gtf_by="gene_name",
    flavor="seurat_v3",
    generate_umap=False,
    rna_sample_column="sample",
    atac_sample_column="sample",
    # GLUE training
    consistency_threshold=0.05,
    treat_sample_as_batch=False,
    save_prefix="glue",
    run_second_glue_for_sample_removal=True,
)

Writes → sampledisco_demo_output/multiomics/integration/glue/ (trained model + integrated objects), sampledisco_demo_output/multiomics/preprocess/adata_sample.h5ad (the cell-union object), and per-modality preprocess/adata_{rna,atac}_preprocessed.h5ad. The integrated cells carry obsm['Z_rmd'] (primary X_glue) and, with the second run enabled, obsm['Z_clust'].

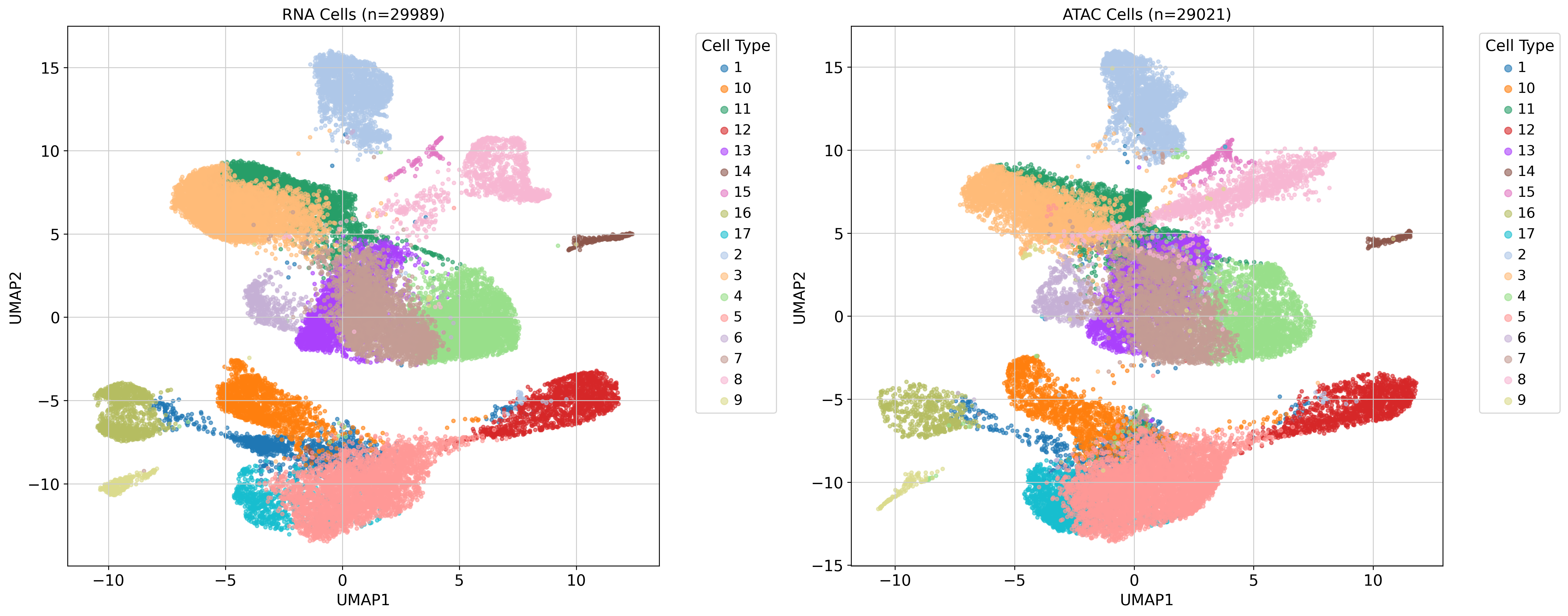

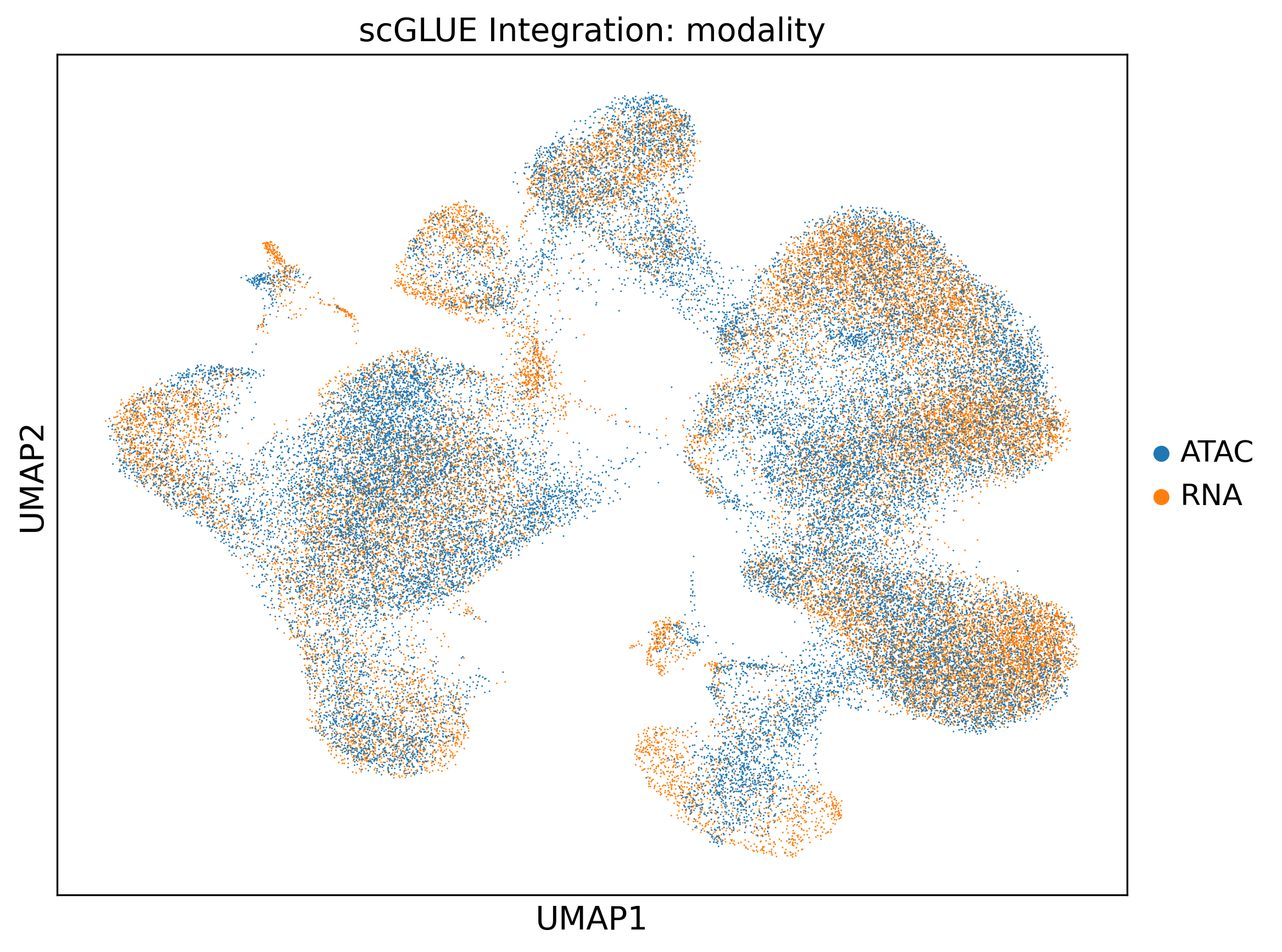

GLUE joint UMAP colored by modality UMAP split by modality

Step 1 — RNA and ATAC cells sharing the GLUE joint embedding. The right panel splits the modalities to confirm good mixing.

When it finishes, load sampledisco_demo_output/multiomics/preprocess/adata_sample.h5ad as adata_integrated and continue — from here the steps are identical whether you loaded the pre-integrated file or built it yourself.

2. Joint cell typing¶

cell_types_multiomics clusters RNA cells with Leiden on the joint embedding, then transfers labels to ATAC via a Jaccard-weighted shared-nearest-neighbor (SNN) graph. use_rep should point at the sample-removed Z_clust; the wrapper resolves this automatically, and the default 'X_glue' is a fallback.

from sampledisco.preparation.multi_omics_cell_type_cpu import cell_types_multiomics

adata_integrated = cell_types_multiomics(
    adata=adata_integrated,                # from step 1 (loaded or freshly integrated)
    modality_column="modality",
    rna_modality_value="RNA",
    atac_modality_value="ATAC",
    cell_type_column="cell_type",
    cluster_resolution=0.8,
    use_rep="Z_clust",
    num_PCs=50,
    k_neighbors=15,
    transfer_metric="cosine",
    compute_umap=True,
    save=True,
    output_dir="sampledisco_demo_output/multiomics",
)

GPU

A GPU-accelerated equivalent is available as cell_types_multiomics_gpu in sampledisco.preparation.multi_omics_cell_type_gpu.

Writes → preprocess/adata_sample.h5ad with a unified cell_type column, plus UMAPs.

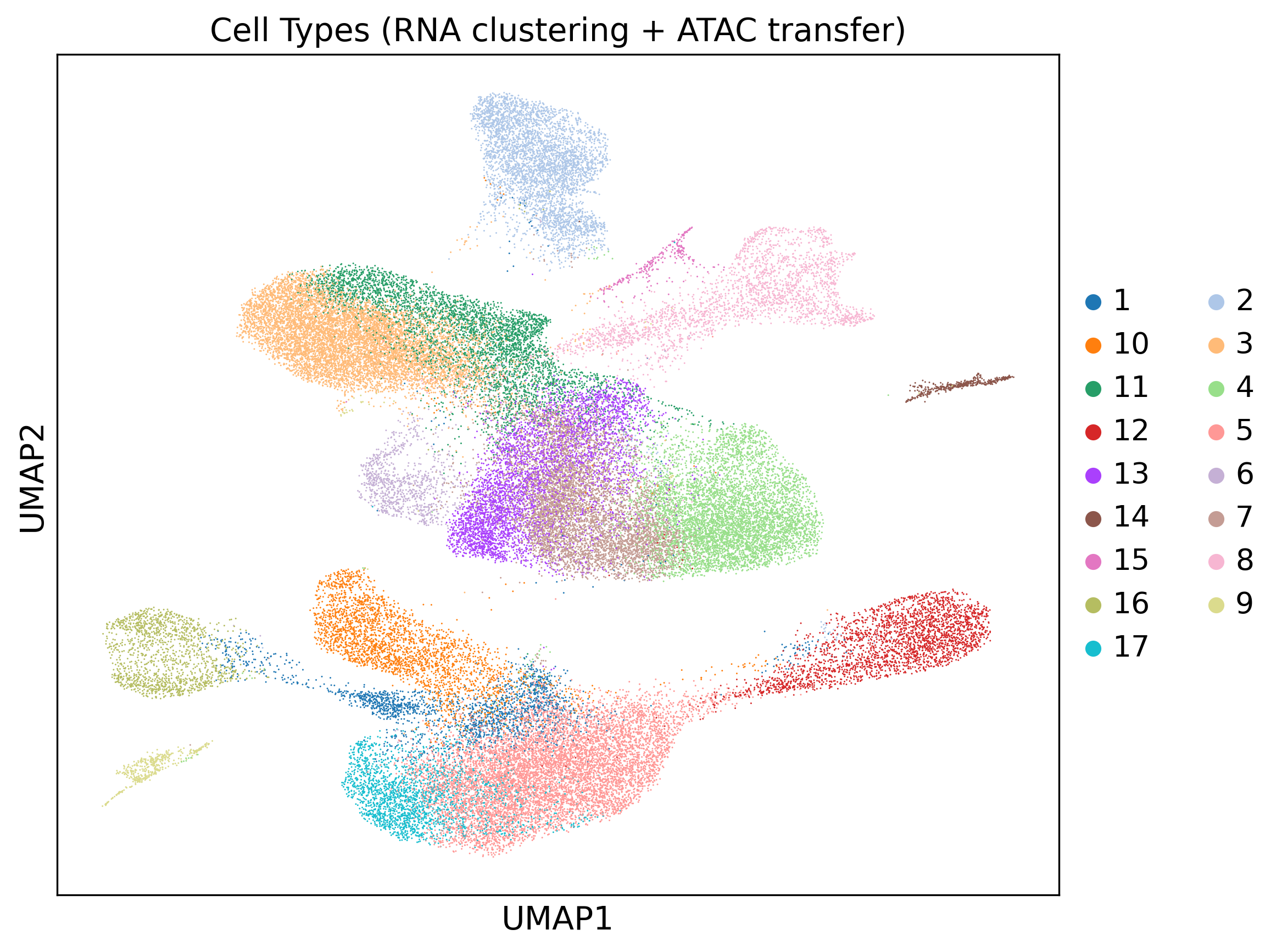

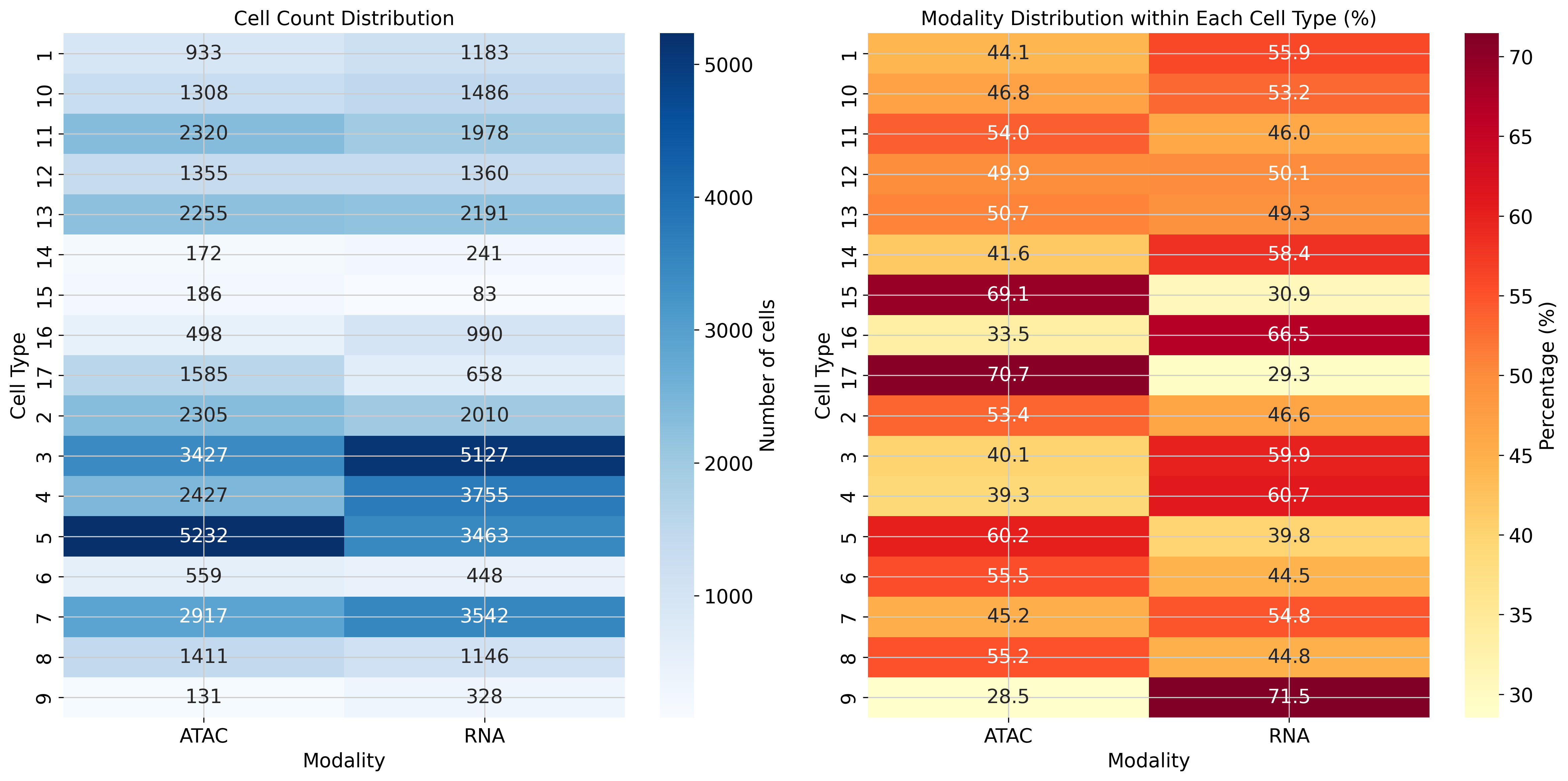

UMAP colored by inferred joint cell type Cell-type × modality confusion heatmap

Step 2 — Joint cell types on the GLUE embedding and a modality-balance check per cluster.

3. Sample embedding¶

The unified compute_sample_embedding handles RNA, ATAC, and multi-omics — there is no separate multi-omics entry point. For multi-omics, pass modality_col="modality"; the units of the resulting embedding are <sample>_RNA / <sample>_ATAC. The composition blocks are built on the sample-removed Z_clust, and the RMD displacement block on the sample-preserved Z_rmd.

from sampledisco.sample_embedding import compute_sample_embedding

adata_integrated = compute_sample_embedding(
    adata_integrated,
    output_dir="sampledisco_demo_output/multiomics",
    use_gpu=False,           # CPU default; set True for RAPIDS on Linux+NVIDIA (auto-falls back to CPU)
    sample_col="sample",
    celltype_col="cell_type",
    cluster_emb_key="Z_clust",
    rmd_emb_key=None,            # defaults to Z_rmd
    modality_col="modality",
    batch_col=None,
    medium_K=120,
    fine_K=300,
    rmd_dim_per_cluster=8,
    rmd_weight=0.60,
    pca_components=10,
    batch_method="harmony",
    save=True,
)

Writes → the single sample embedding into adata_integrated.uns['X_DR_sample'] (a pandas DataFrame, units × PCs) and persists the updated object under sampledisco_demo_output/multiomics/. The function returns the modified AnnData. This single key is consumed by every downstream module.

4. Embedding visualization¶

visualize_multimodal_embedding produces scatter plots of the sample embedding with optional coloring by metadata. Set both expression_key and proportion_key to 'X_DR_sample'.

from sampledisco.visualization.multi_omics_visualization import visualize_multimodal_embedding

visualize_multimodal_embedding(
    adata=adata_integrated,
    modality_col="modality",
    color_col=None,
    target_modality="ATAC",
    expression_key="X_DR_sample",
    proportion_key="X_DR_sample",
    visualization_grouping_column=["sev.level"],
    figsize=(20, 8),
    point_size=60,
    alpha=0.8,
    colormap="viridis",
    output_dir="sampledisco_demo_output/multiomics/visualization",
    show_sample_names=False,
    show_default=True,
)

Writes → per-grouping PNGs under sampledisco_demo_output/multiomics/visualization/. The severity-colored views of these embeddings are shown in the downstream CCA step (see Downstream analysis), so no separate embedding panel is reproduced here.

Once uns['X_DR_sample'] is populated, every remaining analysis — sample distance, CCA / TSCAN, trajectory DGE, sample clustering, proportion test, and RAISIN cluster DGE — is shared across modalities. Parameter selection is the alpha / block-weight autotune, enabled via multiomics_autotune_enable in the config-driven wrapper. Continue to the Downstream analysis tutorials.
